Applications:

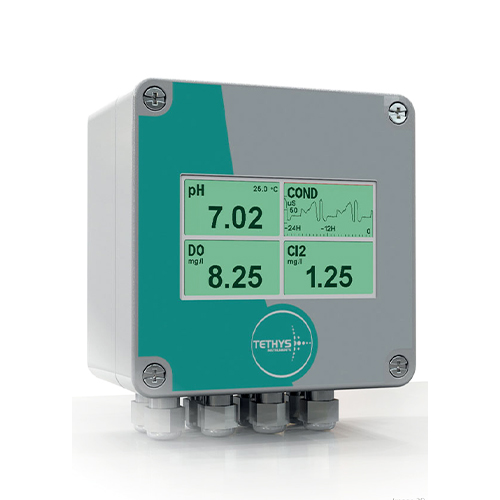

Product Name: EL200 Multi-Parameter Water Analyzer
Brand: TETHYS

※ Configurable with various probe options, for single or multiple channels

※ Special lightning protection device

※ Applications: pH/ORP, Dissolved Oxygen, Conductivity, Chlorine, Turbidity, Temperature, Total Suspended Solids (TSS), COD

■ Utilizes UV spectroscopy measurement principle, supporting multi-parameter measurement

■ Extremely high stability and low maintenance

■ Power Supply: 110-230 VAC 50/60 Hz; 12V DC 3A

■ Patented flow cell design, resistant to clogging even with high suspended solids content

■ Built-in automatic cleaning system, capable of automatic zero-point calibration

■ Minimal chemical usage, simplifying maintenance (only minimal reagents required for parameters such as ammonia, sulfides, etc.)

■ Basic Parameter Modules: COD (UV254nm), Nitrate, Hydrogen Sulfide, Hydrocarbons (oil, phenols, etc.), Chlorophyll A, Rhodamine, Phosphate, pH/ORP, Conductivity, Turbidity, Dissolved Oxygen, Color, Ammonia Nitrogen

■ Model UV500 features a 2048-pixel high-resolution spectrometer scan, wavelength range from 180 nm to 750 nm

■ Touchscreen color graphical display

■ Built-in data logger with storage capacity for 5000 sets of data

■ Customizable parameter ranges

■ Capable of simultaneously measuring up to 6 sample streams

■ Supports multi-parameter measurement, up to 16 sets

■ RS232/RS485 communication interfaces

■ USB port, Wi-Fi (optional)
