Product Introduction
KATflow150

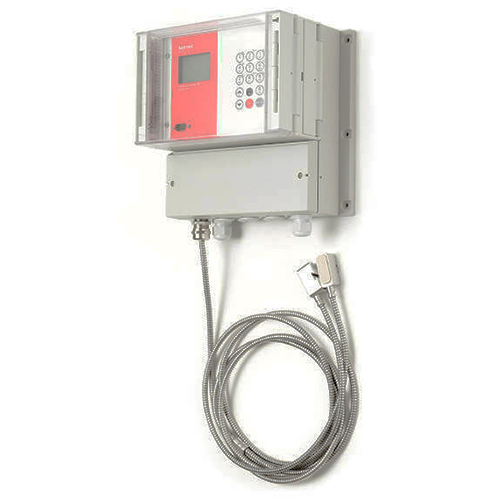

Product Name: KATflow150 Clamp-On Ultrasonic Flow Meter with Time-of-Flight Technology
Brand: Katronic
※ Type: Fixed (Dual-Channel Available)
※ Measurement Range: 10 ~ 6500 mm
※ Flow Velocity Range: 0.01 ~ 25 m/s
※ Output: 4-20mA
※ Communication: RS232, RS485 (optional)
※ Accuracy: ±0.5% (of measured value)
※ Protection Level: Main Unit IP66 / Sensor IP68
※ Optional heat measurement function available
※ Recording Capability: Up to 100,000 data sets
