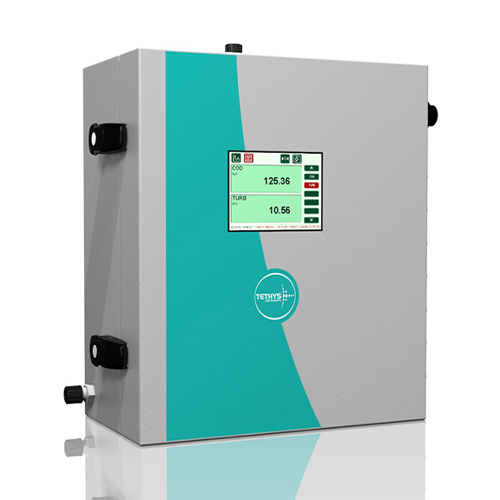

Product Name: UV300 Multi-Parameter Water Analyzer
Brand: TETHYS

※ Display Screen: 320 x 240 pixels

※ Protection Level: IP65 / NEMA4X

※ Dimensions: 420 x 360 x 200 mm

￭ Utilizes UV spectroscopy measurement principle, supporting multi-parameter measurement

￭ Extremely high stability and low maintenance

￭ Power Supply: 110-230 VAC 50/60 Hz; 12V DC 3A

￭ Patented flow cell design, resistant to clogging even with high suspended solids content

￭ Built-in automatic cleaning system, capable of automatic zero-point calibration

￭ Minimal chemical usage, simplifying maintenance (only minimal reagents required for parameters such as ammonia, sulfides, etc.)

￭ Basic Parameter Modules: COD (UV254nm), Nitrate, Hydrogen Sulfide, Hydrocarbons (oil, phenols, etc.), Chlorophyll A, Rhodamine, Phosphate, pH/ORP, Conductivity, Turbidity, Dissolved Oxygen, Color, Ammonia Nitrogen

￭ Model UV500 features a 2048-pixel high-resolution spectrometer scan, wavelength range from 180 nm to 750 nm

￭ Touchscreen color graphical display

￭ Built-in data logger with storage capacity for 5000 sets of data

￭ Customizable parameter ranges

￭ Capable of simultaneously measuring up to 6 sample streams

￭ Supports multi-parameter measurement, up to 16 sets

￭ RS232/RS485 communication interfaces

￭ USB port, Wi-Fi (optional)
